How to use a PCB prototype board?

19 May, 2022

By ren

Some key points to using a PCB Prototype board

Do you want to know how to use a PCB prototype board? Printed circuit boards offer a wide range of applications in technology. However, it is more cost-effective to test the concept first before committing to PCB manufacture. PCB prototype boards are a less expensive approach to testing a concept before ordering a full-scale printed version.

Printed circuit boards are less expensive to produce than conventional circuit boards. There is no need for a complicated wiring process because they are printed.

Because the manufacturing process for a PCB is significantly less labor-intensive than that for traditional circuit boards, electronic design organizations can benefit from speedier turnaround times. Do you want to learn about PCB prototype methods?

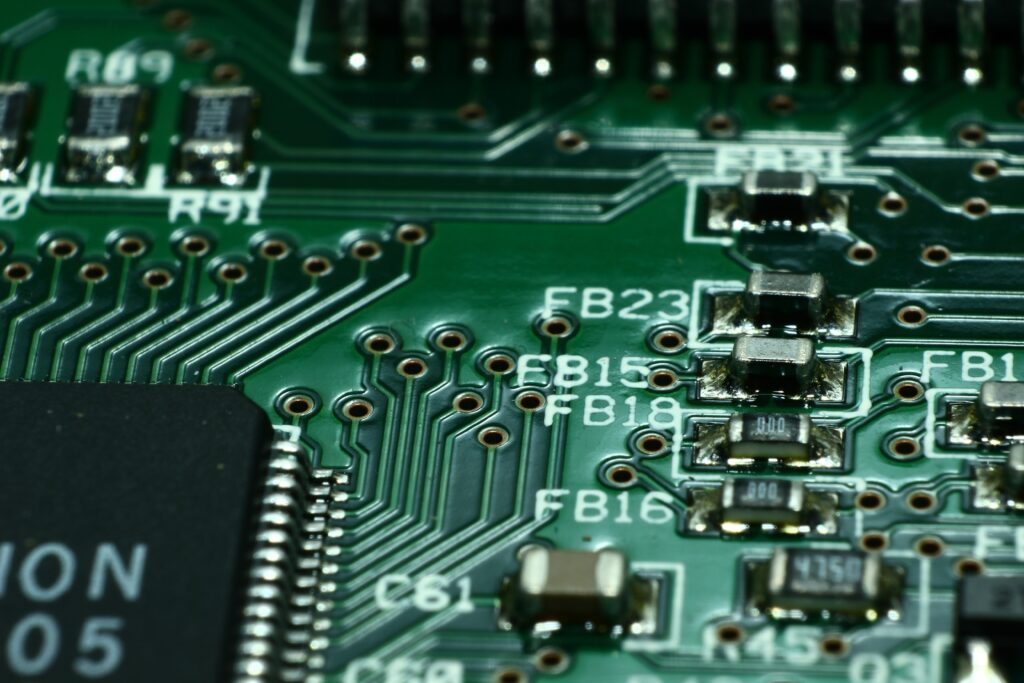

How to use a PCB prototype board?

How do you get ready for PCB prototyping?

Make sure the prototype is suited to your needs before starting the PCB prototyping process. While it is useful for many tasks, it is not required for all. You'll need some basic information about your project to get started if you wish to make a prototype.

Choosing Whether or Not You Need a Prototype

When you want to test your design or run a quality check on your board, prototypes are great. Any time you employ a fresh design for a new project, you should utilize a prototype. How to use a PCB prototype board? You might not require a prototype if you've previously made an electrical device with that board. You should purchase a prototype if you make any design modifications or build a whole new PCB design or product.

What are some of the most prevalent PCB manufacturing issues?

How to use a PCB prototype board? The electronics and PCB manufacturing process is presently facing several challenges together with opportunities. Along with the need to control costs, the PCB manufacturing services will have to focus on finding ways of capitalizing on current trends. This may include integrating technologies outside their primary areas of expertise while meeting demands from customers for highly efficient manufacturing processes that are also eco-friendly. The biggest trends and challenges in the electronics manufacturing industries are likely to be:

1.      Manufacturing is not the same as designing.

The design of your PCB may appear beautiful on paper or a computer screen, but manufacturing it might be a very another story.

For example, there may not be enough tolerance between tracks on the board, resulting in the circuit shorting out later in the process. Alternatively, the design might have numerous components that are near together and each has a distinct thermal mass. Expert process engineering abilities are required to achieve a quality solder connection on each of these components without causing heat damage to the remainder of the circuit board.

2.      Check the multilayer PCB stackability

Stack-up is required for multilayer printed circuit boards since they have more than a single layer count. Before the PCB layout design, insulating and copper layers are stacked up to form a printed circuit board.

Before we get into the specifics of how to use a PCB prototype board? It's important to first understand the many types of prototype boards that are available.

Perf Board

Perf boards are one of the sorts of prototype boards accessible. This design is also known as the "Pad per hole" design because each hole has its copper conductor pad. You may test connections with this configuration by flowing solder between specific pads. A perf board can also be used to route wires between pads.

Stripboard

Stripboards, like the other prevalent form of prototype PCB, feature individual holes. Instead of a separate conductor pad for each perforation, copper strips run parallel under the length of the board to link the holes, hence the name. These strips may be used as wires and can also be used to break connections.

Planning boards can benefit from both sorts of PCB prototypes. Because of the existing copper connections, stripboards can also be used to plan simple circuits. In either case, protoboard soldering and prototyping board wires will be used to evaluate a potential board.

Through-Hole Technology Mounting (THT) is the method of employing plated through-hole components to mount with traces on a PCB.

All components were mounted to the PCB with leads running through component holes in the board until the development of SMT (Surface-mount technology).

Until the end of the 1980s, this technology gained market share.

You're now ready to go deeper into how to use prototype board designs.

Planning

You don't want to go right into creating a PCB prototype board, even if you know how to utilize one. While protoboards are less expensive than printed circuit boards, their configurations are more permanent. To achieve the greatest results, spend some time preparing before you start placing components into position.

Using a board-planning tool on your PC is a simple way to get started. This type of software allows you to see circuits before laying down any components. Keep in mind that certain programs can function with both perf and stripboard, while others can only work with one, so plan your protoboard purchases appropriately.

If you prefer a less computerized approach, graph paper can be used to create a protoboard layout. The premise is that every time two lines cross, a hole appears on your board. Then you can add your components and connections. When utilizing a stripboard, it can also be useful to indicate where you want to break the strip.

Although digital applications make it easier to revise your ideas, drawing things out by hand might help you orient yourself with your project in a different way. In any case, don't miss the planning stage because it will save you time and effort when it comes to making your protoboard.

Protoboard Cutting

When it comes to the protoboard, you probably won't need the entire sheet. Because circuit board sizes can vary, you might need to trim a piece. However, proceed with caution, as this procedure can be difficult.

This is partially due to the protoboard's materials. When you get to that level, the design generally laminates paper with a resin that can withstand the heat of soldering iron, which is excellent. The disadvantage is that this resin makes it very simple to shatter a protoboard, so take care.

A straightedge and a sharp knife are two of the most effective and precise ways to cut protoboards. You can score a line along the edge of the board where you wish to cut it. Rep on the opposite side, then place the protoboard on the edge of a flat surface, such as a table. The board may then be snapped cleanly following your markings.

ยท        Pro Tip: If you score your board along the holes, you'll get a cleaner break because you'll have a less stable protoboard to break and risk snapping.

Band saws and other band tools can be used, but they have a considerably higher risk of destroying the protoboard in the process.

Stripboard from Breadboard

How to use a PCB prototype board? If you've ever worked with prototyping boards, you've almost certainly come across breadboards. Because you may move and alter components out to set up your strategy on these prototype boards, they are considerably better for designing designs. Breadboards can also be reused.

In this case, a component arrangement can be moved to a stripboard for further testing. Furthermore, strip and perforated prototype boards have fewer limitations because more complicated connections can be made. If you're switching from a breadboard to a stripboard, buying a stripboard with the same orientation or breaking the stripboard traces can help.

Moving components from bread to stripboard is one of the most convenient techniques to make a more durable and permanent arrangement for a temporary circuit.

Breaking of Stripboard Traces

Stripboard PCBs have copper strips at the bottom that act as connections, as previously mentioned. You won't want all of your components to be connected all of the time, so you'll need to break these strips.

Thankfully, all you'll need is a drill bit to do this task. Simply insert a four mm bit into the hole where you want the connection to break and press the tip against it. Cut away the copper with a little twisting and pressure, and you'll have isolated strips. Keep in mind that a double-sided PCB prototype board will have a copper thickness on both sides while learning how to use it.

There are instruments available to break these connections if you want something fancier than a basic drill bit, but the DIY method is just as effective.

Read more: The PCB Assembly & PCB Assembly Testing Service

Conclusion

Understanding when and how to use a PCB prototype board? It is essential for anybody looking to create and test circuit boards without incurring the expense of printing. You can get a lot closer to having a finished product with a prototype circuit board.
